Two Inverter Static Droop Control

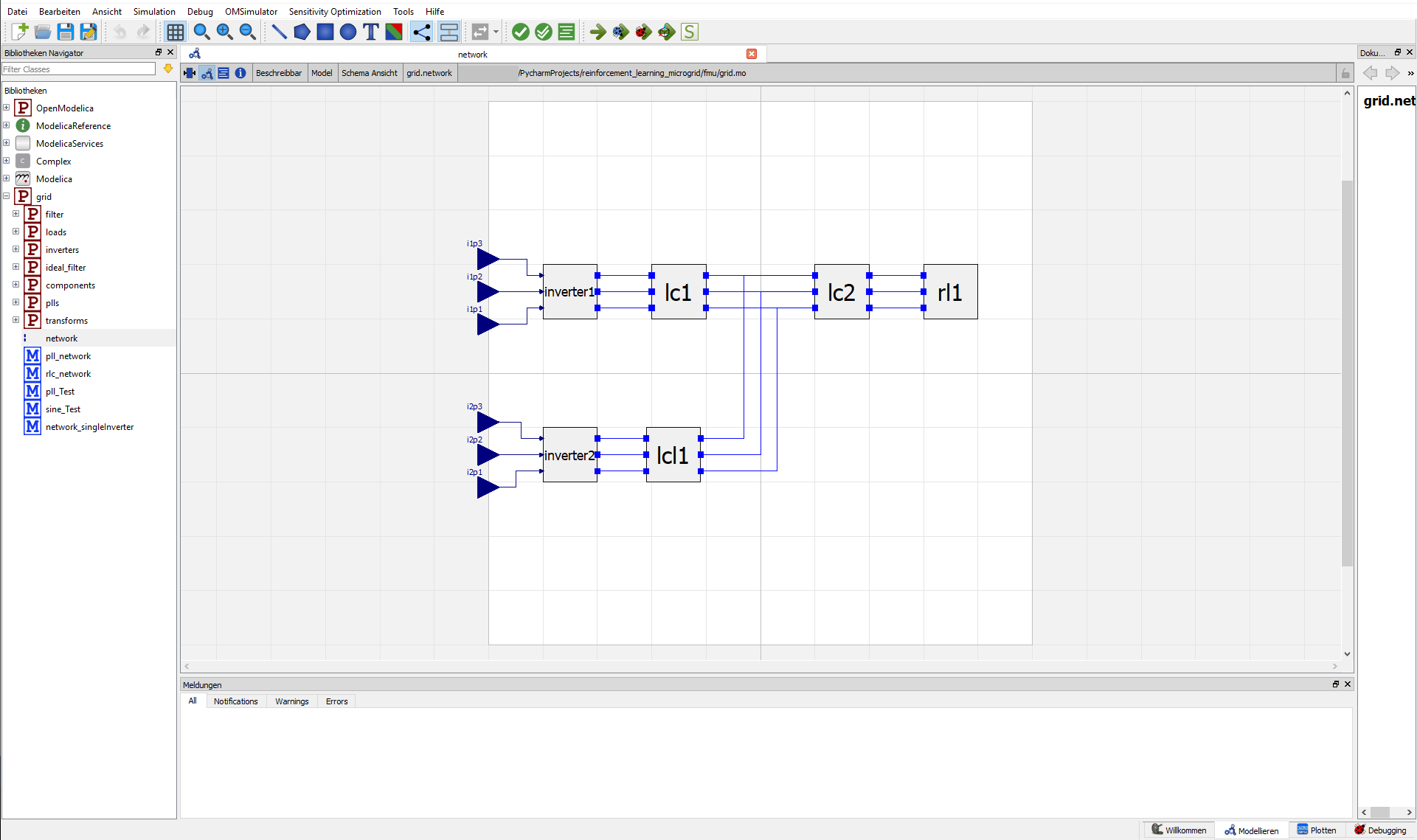

This example simulates a native two-inverter network inspired by the OpenModelica two inverter static droop control example. The original OpenModelica network is useful as the physical schematic: two three-phase inverters feed a shared AC network and load through output filters.

The upper branch is the master inverter. It is voltage-forming: it tries to shape the AC bus voltage and frequency. The lower branch is the slave inverter. It synchronizes to the local voltage and injects controlled \(i_{abc}\) according to the inverse droop law. In the original network image, the upper branch uses an LC filter lc1; the lower branch uses an LCL filter lcl1; the right side is the shared load network.

The runnable Regelum example lives in examples/two_inverter_static_droop/standalone.py. It is a complete standalone script with the controller, branch dynamics, PRS construction, and plotting in one file, so it can be simulated without an OpenModelica/FMU runtime.

uv run python examples/two_inverter_static_droop/standalone.py

Control Idea

The two-inverter network has to keep the AC bus in a useful operating region while both inverters share the load.

The master inverter uses direct droop control. It measures instantaneous active and reactive power at the bus:

\[ P = v_{abc}^{\mathsf{T}} i_{abc}, \qquad Q \approx -\frac{1}{\sqrt{3}} \begin{bmatrix} v_b - v_c & v_c - v_a & v_a - v_b \end{bmatrix} i_{abc}. \]

Then it shifts its frequency and voltage setpoint through filtered droop laws:

\[ f^\star = f_\mathrm{nom} + D_P(P), \qquad V^\star = V_\mathrm{nom} + D_Q(Q). \]

Those setpoints go through \(v\)- and \(i\)-PI loops, and the result is a three-phase modulation signal for the master inverter.

The slave inverter does the opposite direction. It runs a PLL on its local capacitor voltage, estimates the local frequency, and uses inverse droop:

\[ i_d^\star \sim D_P^{-1}(f - f_\mathrm{nom}), \qquad i_q^\star \sim D_Q^{-1}(V - V_\mathrm{nom}). \]

So the master forms the AC bus and the slave reacts to the AC bus. That is the important control split: one inverter creates the voltage reference; the other injects \(i_{abc}\) to help supply the load.

ODE Regelum Model

The example keeps the same conceptual network but writes the electrical plant as rg.ODENode equations wrapped into one rg.ODESystem. The controller is also split into regular rg.Node blocks: droop, PI loops, PLL, inverse droop, and \(i\)-control all keep their memory in NodeState.

First, the standalone script imports NumPy for the three-phase vectors and the framework as rg:

import numpy as np
import regelum as rg

The master starts with a droop node. It reads the lc1.i_abc and lc1.v_abc signals from the ODE plant and publishes frequency, voltage setpoint, and AC phase:

class MasterDroop(rg.Node):
    class Inputs(rg.NodeInputs):
        lc1_i_abc: np.ndarray = rg.src(lambda: Lc1.State.i_abc)
        lc1_v_abc: np.ndarray = rg.src(lambda: Lc1.State.v_abc)

    class State(rg.NodeState):
        frequency_hz: float = rg.var(init=50.0)
        voltage_setpoint_v: float = rg.var(init=230.0 * math.sqrt(2.0))
        ac_phase_rad: float = rg.var(init=0.0)
        ac_phase_turns: float = rg.var(init=0.0)
        p_filter: float = rg.var(init=0.0)
        q_filter: float = rg.var(init=0.0)

The \(v\)- and \(i\)-PI loops are separate nodes. Their integrators and anti-windup terms are explicit state variables:

class MasterLc1VPI(rg.Node):
    class Inputs(rg.NodeInputs):
        lc1_v_abc: np.ndarray = rg.src(lambda: Lc1.State.v_abc)
        ac_phase_rad: float = rg.src(MasterDroop.State.ac_phase_rad)
        voltage_setpoint_v: float = rg.src(MasterDroop.State.voltage_setpoint_v)

    class State(rg.NodeState):
        i_ref_dq0: np.ndarray = rg.var(init=zero_abc)
        integral: np.ndarray = rg.var(init=zero_abc)
        windup: np.ndarray = rg.var(init=zero_abc)

The slave side is also explicit. The PLL estimates phase/frequency, inverse droop computes the \(dq\) \(i\)-reference, and SlaveLcl1IPI produces slave modulation:

class SlavePLL(rg.Node):
    class State(rg.NodeState):
        cos_ac_phase: float = rg.var(init=1.0)
        sin_ac_phase: float = rg.var(init=0.0)
        frequency_hz: float = rg.var(init=50.0)
        ac_phase_rad: float = rg.var(init=0.0)
        ac_phase_turns: float = rg.var(init=0.0)
        integral: float = rg.var(init=0.0)

Two small inverter nodes convert controller modulation into phase voltages:

class Inverter1(rg.Node):
    class Inputs(rg.NodeInputs):
        modulation: np.ndarray = rg.src(MasterLc1IPI.State.modulation)

    class State(rg.NodeState):
        v_abc: np.ndarray = rg.var(init=zero_abc)

The physical network is the continuous part. Lc1, Lcl1, Lc2, and Rl1 are rg.ODENode classes. Their states are normalized: each node stores only its own dynamic variables. Neighboring branches are read through rg.src declarations in dstate(...). Thus Lc1.State and Lc2.State contain v_abc and i_abc, Lcl1.State contains v_abc, inv_i_abc, and bus_i_abc, and Rl1.State contains i_abc. Regelum traces these arrays as CasADi MX vectors inside dstate(...). For example, the master LC filter is ordinary vector algebra:

class Lc1(rg.ODENode):
    class State(rg.NodeState):
        v_abc: np.ndarray = rg.var(init=zero_abc)
        i_abc: np.ndarray = rg.var(init=zero_abc)

    def dstate(
        self,
        state: State,
        inverter_v_abc: np.ndarray = rg.src(Inverter1.State.v_abc),
        lcl1_bus_i_abc: np.ndarray = rg.src(lambda: Lcl1.State.bus_i_abc),
        lc2_i_abc: np.ndarray = rg.src(lambda: Lc2.State.i_abc),
    ) -> State:
        return self.State(
            v_abc=(state.i_abc + lcl1_bus_i_abc - lc2_i_abc)
            / self.capacitance,
            i_abc=(inverter_v_abc - state.v_abc) / self.inductance,
        )

The LCL slave branch is also an ODE node. Its v_abc signal is what the plot records:

class Lcl1(rg.ODENode):
    class State(rg.NodeState):
        v_abc: np.ndarray = rg.var(init=zero_abc)
        inv_i_abc: np.ndarray = rg.var(init=zero_abc)
        bus_i_abc: np.ndarray = rg.var(init=zero_abc)

Lc2 and Rl1 complete the load-side network. The load resistance is not embedded as symbolic branching inside the ODE; it is a normal discrete scenario node. For a 2000-step run, the first third uses R, the second third uses 2R, and the final third returns to R:

class ResistanceScenario(rg.Node):
    class Inputs(rg.NodeInputs):
        tick: int = rg.src(rg.Clock.tick)

    class State(rg.NodeState):
        resistance: float = rg.var(init=20.0)

    def update(self, inputs: Inputs) -> State:
        if inputs.tick < self.first_switch_tick:
            resistance = self.base_resistance
        elif inputs.tick < self.second_switch_tick:
            resistance = 2.0 * self.base_resistance
        else:
            resistance = self.base_resistance
        return self.State(resistance=resistance)


class Rl1(rg.ODENode):
    class Inputs(rg.NodeInputs):
        lc2_v_abc: np.ndarray = rg.src(Lc2.State.v_abc)
        resistance: float = rg.src(ResistanceScenario.State.resistance)

    class State(rg.NodeState):
        i_abc: np.ndarray = rg.var(init=zero_abc)

    def dstate(self, inputs: Inputs, state: State) -> State:
        return self.State(
            i_abc=(inputs.lc2_v_abc - inputs.resistance * state.i_abc) / self.inductance,
        )

Build The System

The PRS splits one simulation tick into four phases. The continuous electrical network is one rg.ODESystem, so Regelum integrates the coupled ODE nodes together on the base electrical step.

def build_system(*, steps: int = 2000) -> rg.PhasedReactiveSystem:
    master_droop = MasterDroop()
    master_lc1_v_pi = MasterLc1VPI()
    master_lc1_i_pi = MasterLc1IPI()
    slave_pll = SlavePLL()
    slave_inverse_droop = SlaveInverseDroop()
    slave_lcl1_i_pi = SlaveLcl1IPI()
    inverter1 = Inverter1()
    inverter2 = Inverter2()
    resistance = ResistanceScenario(
        first_switch_tick=steps // 3,
        second_switch_tick=2 * steps // 3,
    )
    lc1 = Lc1()
    lcl1 = Lcl1()
    lc2 = Lc2()
    rl1 = Rl1()
    electrical = rg.ODESystem(
        nodes=(lc1, lcl1, lc2, rl1),
        dt="0.00005",
        backend="casadi",
        method="cvodes",
        options={"abstol": 1e-9, "reltol": 1e-8},
    )
    logger = Logger()

    return rg.PhasedReactiveSystem(
        phases=[
            rg.Phase(
                "control",
                nodes=(
                    master_droop,
                    master_lc1_v_pi,
                    master_lc1_i_pi,
                    slave_pll,
                    slave_inverse_droop,
                    slave_lcl1_i_pi,
                ),
                transitions=(rg.Goto("inverters"),),
                is_initial=True,
            ),
            rg.Phase("inverters", nodes=(inverter1, inverter2), transitions=(rg.Goto("scenario"),)),
            rg.Phase("scenario", nodes=(resistance,), transitions=(rg.Goto("electrical"),)),
            rg.Phase("electrical", nodes=(electrical,), transitions=(rg.Goto("log"),)),
            rg.Phase("log", nodes=(logger,), transitions=(rg.Goto(rg.terminate),)),
        ],
    )

This order is deliberate. The control phase resolves the controller DAG from measurements to modulation, the inverter nodes compute phase voltages, the scenario node publishes the sampled load resistance, electrical integrates the continuous LC/LCL/load ODEs, and finally the logger records the LCL capacitor voltage plus the active resistance.

Phase Graph

flowchart LR
    init([init]) --> control["control<br/>droop + PI + PLL nodes"]
    control --> inverters["inverters<br/>Inverter1 + Inverter2"]
    inverters --> scenario["scenario<br/>ResistanceScenario"]
    scenario --> electrical["electrical<br/>ODESystem(dt = 0.00005, backend = casadi)"]
    electrical --> log["log<br/>Logger"]
    log --> done([⊥])

    classDef control fill:#d9770622,stroke:#d97706,color:#111318
    classDef inverters fill:#2f6fed22,stroke:#2f6fed,color:#111318
    classDef scenario fill:#7c3aed22,stroke:#7c3aed,color:#111318
    classDef electrical fill:#15803d22,stroke:#15803d,color:#111318
    classDef log fill:#64748b22,stroke:#64748b,color:#111318
    class control control
    class inverters inverters
    class scenario scenario
    class electrical electrical
    class log log

Node Graph

Node colors follow phase colors. Dashed self-state arrows show state carried from the previous tick.

flowchart LR
    masterDroop["MasterDroop"] --> masterLc1VPI["MasterLc1VPI"]
    masterLc1VPI --> masterLc1IPI["MasterLc1IPI"]
    masterLc1IPI --> inv1["Inverter1"]

    slavePLL["SlavePLL"] --> slaveInverseDroop["SlaveInverseDroop"]
    slaveInverseDroop --> slaveLcl1IPI["SlaveLcl1IPI"]
    slavePLL --> slaveLcl1IPI
    slaveLcl1IPI --> inv2["Inverter2"]
    scenario["ResistanceScenario"] --> rl1["Rl1<br/>ODENode"]

    inv1 --> lc1["Lc1<br/>ODENode"]
    inv2 --> lcl1["Lcl1<br/>ODENode"]
    lcl1 --> lc1
    lc1 --> lcl1
    lc1 --> lc2["Lc2<br/>ODENode"]
    lc2 --> rl1
    rl1 --> lc2
    lc1 --> masterDroop
    lc1 --> masterLc1VPI
    lc1 --> masterLc1IPI
    lcl1 --> slavePLL
    lcl1 --> slaveInverseDroop
    lcl1 --> slaveLcl1IPI
    lcl1 --> logger["Logger"]

    master_droop_state(("state")) -.-> masterDroop
    master_lc1_v_pi_state(("state")) -.-> masterLc1VPI
    master_lc1_i_pi_state(("state")) -.-> masterLc1IPI
    slave_pll_state(("state")) -.-> slavePLL
    slave_inverse_state(("state")) -.-> slaveInverseDroop
    slave_lcl1_i_pi_state(("state")) -.-> slaveLcl1IPI
    lc1_state(("state")) -.-> lc1
    lcl1_state(("state")) -.-> lcl1
    lc2_state(("state")) -.-> lc2
    rl1_state(("state")) -.-> rl1
    logger_state(("state")) -.-> logger
    scenario_state(("state")) -.-> scenario

    classDef control fill:#d9770622,stroke:#d97706,color:#111318
    classDef inverters fill:#2f6fed22,stroke:#2f6fed,color:#111318
    classDef scenarioPhase fill:#7c3aed22,stroke:#7c3aed,color:#111318
    classDef electrical fill:#15803d22,stroke:#15803d,color:#111318
    classDef log fill:#64748b22,stroke:#64748b,color:#111318
    classDef state fill:#94a3b822,stroke:#94a3b8,stroke-dasharray:3 3,color:#111318
    class masterDroop,masterLc1VPI,masterLc1IPI,slavePLL,slaveInverseDroop,slaveLcl1IPI control
    class inv1,inv2 inverters
    class scenario scenarioPhase
    class lc1,lcl1,lc2,rl1 electrical
    class logger log
    class master_droop_state,master_lc1_v_pi_state,master_lc1_i_pi_state,slave_pll_state,slave_inverse_state,slave_lcl1_i_pi_state,scenario_state,lc1_state,lcl1_state,lc2_state,rl1_state,logger_state state

Phase Table

Phase	Nodes	Role
control	MasterDroop, MasterLc1VPI, MasterLc1IPI, SlavePLL, SlaveInverseDroop, SlaveLcl1IPI	Computes master voltage-forming and slave modulation as a DAG of stateful nodes.
inverters	Inverter1, Inverter2	Converts modulation into three-phase inverter voltages.
scenario	ResistanceScenario	Publishes the sampled load resistance: R, then 2R, then R.
electrical	ODESystem(Lc1, Lcl1, Lc2, Rl1)	Integrates the coupled electrical differential equations.
log	Logger	Stores the LCL capacitor voltages and resistance for plotting.

Node Table

Node	State	Reads
MasterDroop	frequency, voltage setpoint, AC phase, droop filter states	lc1.v_abc, lc1.i_abc
MasterLc1VPI	i_ref_dq0, PI integral, windup	lc1.v_abc and MasterDroop AC phase/setpoint
MasterLc1IPI	master modulation, PI integral, windup	lc1.i_abc and MasterLc1VPI.i_ref_dq0
SlavePLL	AC phase estimate, frequency estimate, PLL integral	lcl1.v_abc
SlaveInverseDroop	i_ref_dq0 and inverse-droop filter states	SlavePLL frequency and lcl1.v_abc
SlaveLcl1IPI	slave modulation, PI integral, windup	lcl1.inv_i_abc, SlavePLL AC phase, SlaveInverseDroop.i_ref_dq0
Inverter1	v_abc	Master modulation
Inverter2	v_abc	Slave modulation
ResistanceScenario	resistance	rg.Clock.tick
Lc1	v_abc, i_abc	Inverter1.v_abc, Lcl1.bus_i_abc, Lc2.i_abc
Lcl1	v_abc, inv_i_abc, bus_i_abc	Inverter2.v_abc and bus_v_abc
Lc2	v_abc, i_abc	bus_v_abc, Rl1.i_abc
Rl1	i_abc	Lc2.v_abc and ResistanceScenario.resistance
Logger	samples	Built-in rg.Clock.time, Lcl1.v_abc, and resistance

Simulation Result

The documentation plot is generated by:

uv run python examples/two_inverter_static_droop/standalone.py \
  --steps 2000

The plotted signal combines the three-phase capacitor voltage of the slave LCL filter and the sampled load resistance. The resistance scenario occupies equal thirds of the run: nominal resistance, doubled resistance, and nominal resistance again.

The full standalone listing below is the concrete executable example: helper math, controllers, Regelum node definitions, PRS construction, simulation, and plotting in one file.

Standalone Python listing

from __future__ import annotations

import argparse
import math
import shutil
from pathlib import Path

import matplotlib.pyplot as plt
import numpy as np

import regelum as rg

VoltageResistanceSample = tuple[float, float, float, float, float]


def repo_root() -> Path:
    for parent in Path(__file__).resolve().parents:
        if (parent / "pyproject.toml").exists() and (parent / "src" / "regelum").exists():
            return parent
    raise RuntimeError("Could not locate the regelum repository root.")


def zero_abc() -> np.ndarray:
    return np.zeros(3, dtype=float)


def clip(value: float, lower: float, upper: float) -> float:
    return max(lower, min(upper, value))


def inst_rms(value: np.ndarray) -> float:
    return float(np.linalg.norm(value) / math.sqrt(3.0))


def normalise_abc(value: np.ndarray) -> np.ndarray:
    magnitude = inst_rms(value)
    if magnitude == 0:
        return value
    return value / magnitude


def abc_to_alpha_beta(abc: np.ndarray) -> tuple[float, float]:
    alpha = (2.0 / 3.0) * (abc[0] - 0.5 * abc[1] - 0.5 * abc[2])
    beta = (2.0 / 3.0) * (0.866 * abc[1] - 0.866 * abc[2])
    return float(alpha), float(beta)


def cos_sin(theta: float) -> tuple[float, float]:
    return math.cos(theta), math.sin(theta)


def dq0_to_abc_cos_sin(dq0: np.ndarray, cos_value: float, sin_value: float) -> np.ndarray:
    transform = np.array(
        [
            [cos_value, -sin_value, 1.0],
            [
                cos_value * (-0.5) - sin_value * (-0.866),
                -(sin_value * (-0.5) + cos_value * (-0.866)),
                1.0,
            ],
            [
                cos_value * (-0.5) - sin_value * 0.866,
                -(sin_value * (-0.5) + cos_value * 0.866),
                1.0,
            ],
        ],
        dtype=float,
    )
    return transform @ dq0


def dq0_to_abc(dq0: np.ndarray, theta: float) -> np.ndarray:
    return dq0_to_abc_cos_sin(dq0, *cos_sin(theta))


def abc_to_dq0_cos_sin(abc: np.ndarray, cos_value: float, sin_value: float) -> np.ndarray:
    cos_shift_neg = cos_value * (-0.5) - sin_value * (-0.866)
    sin_shift_neg = sin_value * (-0.5) + cos_value * (-0.866)
    cos_shift_pos = cos_value * (-0.5) - sin_value * 0.866
    sin_shift_pos = sin_value * (-0.5) + cos_value * 0.866
    return np.array(
        [
            (2.0 / 3.0) * (cos_value * abc[0] + cos_shift_neg * abc[1] + cos_shift_pos * abc[2]),
            (2.0 / 3.0) * (-sin_value * abc[0] - sin_shift_neg * abc[1] - sin_shift_pos * abc[2]),
            float(np.sum(abc) / 3.0),
        ],
        dtype=float,
    )


def abc_to_dq0(abc: np.ndarray, theta: float) -> np.ndarray:
    return abc_to_dq0_cos_sin(abc, *cos_sin(theta))


def inst_power(v_abc: np.ndarray, i_abc: np.ndarray) -> float:
    return float(np.dot(v_abc, i_abc))


def inst_reactive(v_abc: np.ndarray, i_abc: np.ndarray) -> float:
    quadrature_v = np.roll(v_abc, -1) - np.roll(v_abc, -2)
    return float(-0.5773502691896258 * np.dot(quadrature_v, i_abc))


def pi_update(
    *,
    setpoint: np.ndarray,
    measured: np.ndarray,
    integral: np.ndarray,
    windup: np.ndarray,
    kp: float,
    ki: float,
    limits: tuple[float, float],
    dt: float,
    feedforward: np.ndarray | None = None,
    kb: float = 1.0,
) -> tuple[np.ndarray, np.ndarray, np.ndarray]:
    if feedforward is None:
        feedforward = zero_abc()
    error = setpoint - measured
    next_integral = integral + (ki * error + windup) * dt
    raw = kp * error + next_integral + feedforward
    output = np.clip(raw, limits[0], limits[1])
    next_windup = (raw - output) * kb
    return output, next_integral, next_windup


def pt1_update(*, value: float, integral: float, gain: float, tau: float, dt: float) -> float:
    output = value * gain - integral
    if tau != 0:
        return integral + output / tau * dt
    if gain != 0:
        return 0.0
    return 0.0


def advance_phase_turns(phase_turns: float, frequency_hz: float, dt: float) -> float:
    next_phase = phase_turns + dt * frequency_hz
    if next_phase > 1.0:
        next_phase -= 1.0
    return next_phase


def save_lcl1_plot(samples: list[VoltageResistanceSample], output: Path) -> None:
    output.parent.mkdir(parents=True, exist_ok=True)
    time = [row[0] for row in samples]
    v1 = [row[1] for row in samples]
    v2 = [row[2] for row in samples]
    v3 = [row[3] for row in samples]
    resistance = [row[4] for row in samples]

    fig, voltage_ax = plt.subplots(figsize=(8.0, 4.8), dpi=100)
    voltage_ax.plot(time, v1, label="AC phase A voltage", linewidth=1.2)
    voltage_ax.plot(time, v2, label="AC phase B voltage", linewidth=1.2)
    voltage_ax.plot(time, v3, label="AC phase C voltage", linewidth=1.2)
    voltage_ax.set_xlabel("time, s")
    voltage_ax.set_ylabel("AC phase voltage, V")
    voltage_ax.set_xlim(min(time), max(time))
    voltage_ax.grid(True, alpha=0.25)

    resistance_ax = voltage_ax.twinx()
    resistance_ax.step(
        time,
        resistance,
        where="post",
        color="black",
        linestyle="--",
        linewidth=1.2,
        label="load resistance",
    )
    resistance_ax.set_ylabel("load resistance, Ohm")

    voltage_lines, voltage_labels = voltage_ax.get_legend_handles_labels()
    resistance_lines, resistance_labels = resistance_ax.get_legend_handles_labels()
    fig.legend(
        voltage_lines + resistance_lines,
        voltage_labels + resistance_labels,
        loc="upper center",
        bbox_to_anchor=(0.5, 0.99),
        ncol=4,
        frameon=False,
    )
    fig.tight_layout(rect=(0.0, 0.0, 1.0, 0.92))
    fig.savefig(output)
    plt.close(fig)


class MasterDroop(rg.Node):
    def __init__(
        self,
        *,
        dt: float = 0.5e-4,
        v_nom: float = 230.0 * math.sqrt(2.0),
        freq_nom: float = 50.0,
    ) -> None:
        self.dt = dt
        self.v_nom = v_nom
        self.freq_nom = freq_nom

    class Inputs(rg.NodeInputs):
        lc1_i_abc: np.ndarray = rg.src(lambda: Lc1.State.i_abc)
        lc1_v_abc: np.ndarray = rg.src(lambda: Lc1.State.v_abc)

    class State(rg.NodeState):
        frequency_hz: float = rg.var(init=50.0)
        voltage_setpoint_v: float = rg.var(init=230.0 * math.sqrt(2.0))
        ac_phase_rad: float = rg.var(init=0.0)
        ac_phase_turns: float = rg.var(init=0.0)
        p_filter: float = rg.var(init=0.0)
        q_filter: float = rg.var(init=0.0)

    def update(self, inputs: Inputs, prev_state: State) -> State:
        instant_power = -inst_power(inputs.lc1_v_abc, inputs.lc1_i_abc)
        p_filter = pt1_update(
            value=instant_power,
            integral=prev_state.p_filter,
            gain=1.0 / 40000.0,
            tau=0.005,
            dt=self.dt,
        )
        frequency_hz = p_filter + self.freq_nom

        instant_q = -inst_reactive(inputs.lc1_v_abc, inputs.lc1_i_abc)
        q_filter = pt1_update(
            value=instant_q,
            integral=prev_state.q_filter,
            gain=1.0 / 1000.0,
            tau=0.002,
            dt=self.dt,
        )
        voltage_setpoint_v = q_filter + self.v_nom
        ac_phase_turns = advance_phase_turns(prev_state.ac_phase_turns, frequency_hz, self.dt)
        return self.State(
            frequency_hz=frequency_hz,
            voltage_setpoint_v=voltage_setpoint_v,
            ac_phase_rad=ac_phase_turns * 2.0 * math.pi,
            ac_phase_turns=ac_phase_turns,
            p_filter=p_filter,
            q_filter=q_filter,
        )


class MasterLc1VPI(rg.Node):
    def __init__(self, *, dt: float = 0.5e-4, i_lim: float = 30.0) -> None:
        self.dt = dt
        self.i_lim = i_lim

    class Inputs(rg.NodeInputs):
        lc1_v_abc: np.ndarray = rg.src(lambda: Lc1.State.v_abc)
        ac_phase_rad: float = rg.src(MasterDroop.State.ac_phase_rad)
        voltage_setpoint_v: float = rg.src(MasterDroop.State.voltage_setpoint_v)

    class State(rg.NodeState):
        i_ref_dq0: np.ndarray = rg.var(init=zero_abc)
        integral: np.ndarray = rg.var(init=zero_abc)
        windup: np.ndarray = rg.var(init=zero_abc)

    def update(self, inputs: Inputs, prev_state: State) -> State:
        voltage_dq0 = abc_to_dq0(inputs.lc1_v_abc, inputs.ac_phase_rad)
        voltage_setpoint_dq0 = np.array([inputs.voltage_setpoint_v, 0.0, 0.0], dtype=float)
        i_ref_dq0, integral, windup = pi_update(
            setpoint=voltage_setpoint_dq0,
            measured=voltage_dq0,
            integral=prev_state.integral,
            windup=prev_state.windup,
            kp=0.025,
            ki=60.0,
            limits=(-self.i_lim, self.i_lim),
            dt=self.dt,
        )
        return self.State(
            i_ref_dq0=i_ref_dq0,
            integral=integral,
            windup=windup,
        )


class MasterLc1IPI(rg.Node):
    def __init__(self, *, dt: float = 0.5e-4) -> None:
        self.dt = dt

    class Inputs(rg.NodeInputs):
        lc1_i_abc: np.ndarray = rg.src(lambda: Lc1.State.i_abc)
        ac_phase_rad: float = rg.src(MasterDroop.State.ac_phase_rad)
        i_ref_dq0: np.ndarray = rg.src(MasterLc1VPI.State.i_ref_dq0)

    class State(rg.NodeState):
        modulation: np.ndarray = rg.var(init=zero_abc)
        integral: np.ndarray = rg.var(init=zero_abc)
        windup: np.ndarray = rg.var(init=zero_abc)

    def update(self, inputs: Inputs, prev_state: State) -> State:
        i_dq0 = abc_to_dq0(inputs.lc1_i_abc, inputs.ac_phase_rad)
        modulation_dq0, integral, windup = pi_update(
            setpoint=inputs.i_ref_dq0,
            measured=i_dq0,
            integral=prev_state.integral,
            windup=prev_state.windup,
            kp=0.012,
            ki=90.0,
            limits=(-1.0, 1.0),
            dt=self.dt,
        )
        modulation = np.clip(dq0_to_abc(modulation_dq0, inputs.ac_phase_rad), -1.0, 1.0)
        return self.State(modulation=modulation, integral=integral, windup=windup)


class SlavePLL(rg.Node):
    def __init__(self, *, dt: float = 0.5e-4, f_nom: float = 50.0) -> None:
        self.dt = dt
        self.f_nom = f_nom

    class Inputs(rg.NodeInputs):
        lcl1_v_abc: np.ndarray = rg.src(lambda: Lcl1.State.v_abc)

    class State(rg.NodeState):
        cos_ac_phase: float = rg.var(init=1.0)
        sin_ac_phase: float = rg.var(init=0.0)
        frequency_hz: float = rg.var(init=50.0)
        ac_phase_rad: float = rg.var(init=0.0)
        ac_phase_turns: float = rg.var(init=0.0)
        integral: float = rg.var(init=0.0)

    def update(self, inputs: Inputs, prev_state: State) -> State:
        normalised = normalise_abc(inputs.lcl1_v_abc)
        alpha_beta = abc_to_alpha_beta(normalised)
        dphi = alpha_beta[1] * prev_state.cos_ac_phase - alpha_beta[0] * prev_state.sin_ac_phase
        integral = prev_state.integral + 200.0 * dphi * self.dt
        frequency_hz = 10.0 * dphi + integral + self.f_nom
        ac_phase_turns = advance_phase_turns(prev_state.ac_phase_turns, frequency_hz, self.dt)
        ac_phase_rad = ac_phase_turns * 2.0 * math.pi
        cos_ac_phase, sin_ac_phase = cos_sin(ac_phase_rad)
        return self.State(
            cos_ac_phase=cos_ac_phase,
            sin_ac_phase=sin_ac_phase,
            frequency_hz=frequency_hz,
            ac_phase_rad=ac_phase_rad,
            ac_phase_turns=ac_phase_turns,
            integral=integral,
        )


class SlaveInverseDroop(rg.Node):
    def __init__(
        self,
        *,
        dt: float = 0.5e-4,
        v_nom: float = 230.0 * math.sqrt(2.0),
        i_lim: float = 30.0,
    ) -> None:
        self.dt = dt
        self.v_nom = v_nom
        self.i_lim = i_lim

    class Inputs(rg.NodeInputs):
        lcl1_v_abc: np.ndarray = rg.src(lambda: Lcl1.State.v_abc)
        frequency_hz: float = rg.src(SlavePLL.State.frequency_hz)

    class State(rg.NodeState):
        i_ref_dq0: np.ndarray = rg.var(init=zero_abc)
        p_filter: float = rg.var(init=0.0)
        p_previous: float = rg.var(init=0.0)
        q_filter: float = rg.var(init=0.0)
        q_previous: float = rg.var(init=0.0)

    def update(self, inputs: Inputs, prev_state: State) -> State:
        v_inst = inst_rms(inputs.lcl1_v_abc)
        if v_inst <= 150.0:
            return self.State(
                i_ref_dq0=zero_abc(),
                p_filter=prev_state.p_filter,
                p_previous=prev_state.p_previous,
                q_filter=prev_state.q_filter,
                q_previous=prev_state.q_previous,
            )

        p_filter = pt1_update(
            value=inputs.frequency_hz - 50.0,
            integral=prev_state.p_filter,
            gain=1.0,
            tau=0.04,
            dt=self.dt,
        )
        p_output = p_filter * 40000.0 + (p_filter - prev_state.p_previous)

        q_filter = pt1_update(
            value=v_inst - self.v_nom,
            integral=prev_state.q_filter,
            gain=1.0,
            tau=0.01,
            dt=self.dt,
        )
        q_output = q_filter * 50.0 + (q_filter - prev_state.q_previous)

        active_i = p_output / v_inst
        reactive_i = q_output / v_inst
        droop = np.array(
            [
                clip(active_i / 3.0 * math.sqrt(2.0), -self.i_lim, self.i_lim),
                clip(reactive_i / 3.0 * math.sqrt(2.0), -self.i_lim, self.i_lim),
                0.0,
            ],
            dtype=float,
        )
        return self.State(
            i_ref_dq0=np.array([-droop[0], droop[1], droop[2]], dtype=float),
            p_filter=p_filter,
            p_previous=p_filter,
            q_filter=q_filter,
            q_previous=q_filter,
        )


class SlaveLcl1IPI(rg.Node):
    def __init__(self, *, dt: float = 0.5e-4) -> None:
        self.dt = dt

    class Inputs(rg.NodeInputs):
        lcl1_inv_i_abc: np.ndarray = rg.src(lambda: Lcl1.State.inv_i_abc)
        cos_ac_phase: float = rg.src(SlavePLL.State.cos_ac_phase)
        sin_ac_phase: float = rg.src(SlavePLL.State.sin_ac_phase)
        i_ref_dq0: np.ndarray = rg.src(SlaveInverseDroop.State.i_ref_dq0)

    class State(rg.NodeState):
        modulation: np.ndarray = rg.var(init=zero_abc)
        integral: np.ndarray = rg.var(init=zero_abc)
        windup: np.ndarray = rg.var(init=zero_abc)

    def update(self, inputs: Inputs, prev_state: State) -> State:
        i_dq0 = abc_to_dq0_cos_sin(
            inputs.lcl1_inv_i_abc,
            inputs.cos_ac_phase,
            inputs.sin_ac_phase,
        )
        modulation_dq0, integral, windup = pi_update(
            setpoint=inputs.i_ref_dq0,
            measured=i_dq0,
            integral=prev_state.integral,
            windup=prev_state.windup,
            kp=0.005,
            ki=200.0,
            limits=(-1.0, 1.0),
            dt=self.dt,
        )
        modulation = np.clip(
            dq0_to_abc_cos_sin(modulation_dq0, inputs.cos_ac_phase, inputs.sin_ac_phase),
            -1.0,
            1.0,
        )
        return self.State(modulation=modulation, integral=integral, windup=windup)


class Inverter1(rg.Node):
    def __init__(self, *, v_dc: float = 1000.0) -> None:
        self.gain = 0.5 * v_dc

    class Inputs(rg.NodeInputs):
        modulation: np.ndarray = rg.src(MasterLc1IPI.State.modulation)

    class State(rg.NodeState):
        v_abc: np.ndarray = rg.var(init=zero_abc)

    def update(self, inputs: Inputs) -> State:
        return self.State(v_abc=inputs.modulation * self.gain)


class Inverter2(rg.Node):
    def __init__(self, *, v_dc: float = 1000.0) -> None:
        self.gain = 0.5 * v_dc

    class Inputs(rg.NodeInputs):
        modulation: np.ndarray = rg.src(SlaveLcl1IPI.State.modulation)

    class State(rg.NodeState):
        v_abc: np.ndarray = rg.var(init=zero_abc)

    def update(self, inputs: Inputs) -> State:
        return self.State(v_abc=inputs.modulation * self.gain)


class ResistanceScenario(rg.Node):
    def __init__(
        self,
        *,
        base_resistance: float = 20.0,
        first_switch_tick: int,
        second_switch_tick: int,
    ) -> None:
        self.base_resistance = base_resistance
        self.first_switch_tick = first_switch_tick
        self.second_switch_tick = second_switch_tick

    class Inputs(rg.NodeInputs):
        tick: int = rg.src(rg.Clock.tick)

    class State(rg.NodeState):
        resistance: float = rg.var(init=20.0)

    def update(self, inputs: Inputs) -> State:
        if inputs.tick < self.first_switch_tick:
            resistance = self.base_resistance
        elif inputs.tick < self.second_switch_tick:
            resistance = 2.0 * self.base_resistance
        else:
            resistance = self.base_resistance
        return self.State(resistance=resistance)


class Lc1(rg.ODENode):
    def __init__(self, *, inductance: float = 0.001, capacitance: float = 1.0e-5) -> None:
        self.inductance = inductance
        self.capacitance = capacitance

    class State(rg.NodeState):
        v_abc: np.ndarray = rg.var(init=zero_abc)
        i_abc: np.ndarray = rg.var(init=zero_abc)

    def dstate(
        self,
        state: State,
        inverter_v_abc: np.ndarray = rg.src(Inverter1.State.v_abc),
        lcl1_bus_i_abc: np.ndarray = rg.src(lambda: Lcl1.State.bus_i_abc),
        lc2_i_abc: np.ndarray = rg.src(lambda: Lc2.State.i_abc),
    ) -> State:  # ty: ignore[invalid-method-override]
        return self.State(
            v_abc=(state.i_abc + lcl1_bus_i_abc - lc2_i_abc) / self.capacitance,
            i_abc=(inverter_v_abc - state.v_abc) / self.inductance,
        )


class Lcl1(rg.ODENode):
    def __init__(self, *, inductance: float = 0.001, capacitance: float = 1.0e-5) -> None:
        self.inductance = inductance
        self.capacitance = capacitance

    class State(rg.NodeState):
        v_abc: np.ndarray = rg.var(init=zero_abc)
        inv_i_abc: np.ndarray = rg.var(init=zero_abc)
        bus_i_abc: np.ndarray = rg.var(init=zero_abc)

    def dstate(
        self,
        state: State,
        inverter_v_abc: np.ndarray = rg.src(Inverter2.State.v_abc),
        bus_v_abc: np.ndarray = rg.src(Lc1.State.v_abc),
    ) -> State:  # ty: ignore[invalid-method-override]
        return self.State(
            v_abc=(state.inv_i_abc - state.bus_i_abc) / self.capacitance,
            inv_i_abc=(inverter_v_abc - state.v_abc) / self.inductance,
            bus_i_abc=(state.v_abc - bus_v_abc) / self.inductance,
        )


class Lc2(rg.ODENode):
    def __init__(self, *, inductance: float = 0.001, capacitance: float = 1.0e-5) -> None:
        self.inductance = inductance
        self.capacitance = capacitance

    class State(rg.NodeState):
        v_abc: np.ndarray = rg.var(init=zero_abc)
        i_abc: np.ndarray = rg.var(init=zero_abc)

    def dstate(
        self,
        state: State,
        bus_v_abc: np.ndarray = rg.src(Lc1.State.v_abc),
        rl1_i_abc: np.ndarray = rg.src(lambda: Rl1.State.i_abc),
    ) -> State:  # ty: ignore[invalid-method-override]
        return self.State(
            v_abc=(state.i_abc - rl1_i_abc) / self.capacitance,
            i_abc=(bus_v_abc - state.v_abc) / self.inductance,
        )


class Rl1(rg.ODENode):
    def __init__(self, *, inductance: float = 0.001) -> None:
        self.inductance = inductance

    class Inputs(rg.NodeInputs):
        lc2_v_abc: np.ndarray = rg.src(Lc2.State.v_abc)
        resistance: float = rg.src(ResistanceScenario.State.resistance)

    class State(rg.NodeState):
        i_abc: np.ndarray = rg.var(init=zero_abc)

    def dstate(self, inputs: Inputs, state: State) -> State:  # ty: ignore[invalid-method-override]
        return self.State(
            i_abc=(inputs.lc2_v_abc - inputs.resistance * state.i_abc) / self.inductance,
        )


class Logger(rg.Node):
    class Inputs(rg.NodeInputs):
        time_s: float = rg.src(rg.Clock.time)
        lcl1_v_abc: np.ndarray = rg.src(Lcl1.State.v_abc)
        resistance: float = rg.src(ResistanceScenario.State.resistance)

    class State(rg.NodeState):
        samples: list[VoltageResistanceSample] = rg.var(init=list)

    def update(self, inputs: Inputs, prev_state: State) -> State:
        sample = (
            inputs.time_s,
            float(inputs.lcl1_v_abc[0]),
            float(inputs.lcl1_v_abc[1]),
            float(inputs.lcl1_v_abc[2]),
            inputs.resistance,
        )
        prev_state.samples.append(sample)
        return self.State(samples=prev_state.samples)


def build_system(*, steps: int = 2000) -> rg.PhasedReactiveSystem:
    master_droop = MasterDroop()
    master_lc1_v_pi = MasterLc1VPI()
    master_lc1_i_pi = MasterLc1IPI()
    slave_pll = SlavePLL()
    slave_inverse_droop = SlaveInverseDroop()
    slave_lcl1_i_pi = SlaveLcl1IPI()
    inverter1 = Inverter1()
    inverter2 = Inverter2()
    resistance = ResistanceScenario(
        first_switch_tick=steps // 3,
        second_switch_tick=2 * steps // 3,
    )
    lc1 = Lc1()
    lcl1 = Lcl1()
    lc2 = Lc2()
    rl1 = Rl1()
    electrical = rg.ODESystem(
        nodes=(lc1, lcl1, lc2, rl1),
        dt="0.00005",
        backend="casadi",
        method="cvodes",
        options={"abstol": 1e-9, "reltol": 1e-8},
    )
    logger = Logger()

    return rg.PhasedReactiveSystem(
        phases=[
            rg.Phase(
                "control",
                nodes=(
                    master_droop,
                    master_lc1_v_pi,
                    master_lc1_i_pi,
                    slave_pll,
                    slave_inverse_droop,
                    slave_lcl1_i_pi,
                ),
                transitions=(rg.Goto("inverters"),),
                is_initial=True,
            ),
            rg.Phase("inverters", nodes=(inverter1, inverter2), transitions=(rg.Goto("scenario"),)),
            rg.Phase("scenario", nodes=(resistance,), transitions=(rg.Goto("electrical"),)),
            rg.Phase("electrical", nodes=(electrical,), transitions=(rg.Goto("log"),)),
            rg.Phase("log", nodes=(logger,), transitions=(rg.Goto(rg.terminate),)),
        ],
    )


def main() -> None:
    parser = argparse.ArgumentParser()
    parser.add_argument("--steps", type=int, default=2000)
    parser.add_argument(
        "--output",
        type=Path,
        default=Path(__file__).resolve().parent / "lcl1_voltage_and_resistance.svg",
    )
    parser.add_argument(
        "--docs-output",
        type=Path,
        default=repo_root()
        / "docs"
        / "assets"
        / "examples"
        / "two_inverter_static_droop"
        / "lcl1_voltage_and_resistance.svg",
    )
    args = parser.parse_args()

    system = build_system(steps=args.steps)
    system.run(args.steps)
    snapshot = system.snapshot()
    samples = snapshot["Logger.samples"]
    save_lcl1_plot(samples, args.output)
    args.docs_output.parent.mkdir(parents=True, exist_ok=True)
    shutil.copyfile(args.output, args.docs_output)
    print(f"steps={args.steps}")
    print(f"samples={len(samples)}")
    print(args.output.resolve())
    print(args.docs_output.resolve())


if __name__ == "__main__":
    main()
